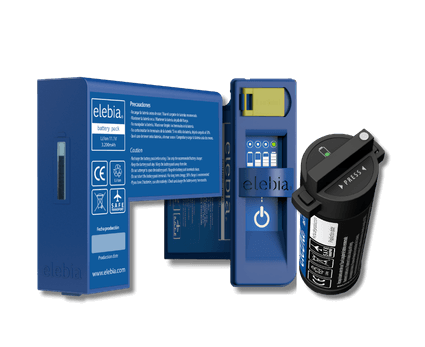

Batteries & Chargers
Find out more about the modern and long-life batteries and chargers for our automatic crane hooks, lifting clamps and NEO range of lifting hooks. The elebia batteries and chargers will enhance productivity and make the most of your time.
Neo 100 · S40 · evo5–evo25

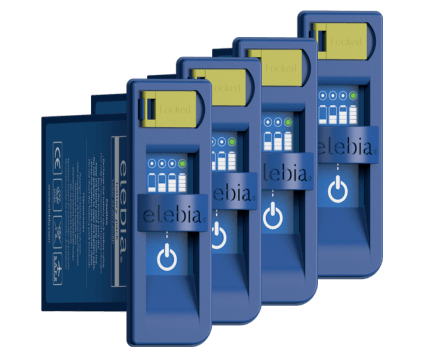

evo5 to evo25 — Batteries
Standard
evo5–evo25 Battery — Standard
EVO-1700
REF.: EVO-1700
No connectors or wires. Push to insert, pull to remove. Lock system prevents battery from falling on impact. Ergonomic rubber handle. 4 LEDs show charge at 25%, 50%, 75% and 100%.
| Technology | Rechargeable Li-Ion |
| Nominal Voltage | 21.6V DC |
| Nominal Capacity | 2.6 Ah |
| Max. Discharge Current | 6 A |
| Heat Protection | Thermal 70 ºC / 158 ºF |
| Charge Indicator | 4 LEDs (25–50–75–100%) |
| Temp. Charge | 0 to 45 ºC / 32 to 113 ºF |
| Temp. Discharge | −20 to 50 ºC / −4 to 122 ºF |
| Temp. Idle | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 390 g / 13.75 oz. |
High Temperature
evo5–evo25 Battery — High Temperature
EVO-1700-T
REF.: EVO-1700-T
For demanding environments with extreme heat. Thermal cut-off at 90 ºC and extended maximum discharge temperature of 60 ºC.
| Technology | Rechargeable Li-Ion |
| Nominal Voltage | 21.6V DC |
| Nominal Capacity | 2.6 Ah |
| Max. Discharge Current | 6 A |
| Heat Protection | Cut-off 90 ºC / 194 ºF |
| Charge Indicator | 4 LEDs (25–50–75–100%) |
| Temp. Charge | 0 to 45 ºC / 32 to 113 ºF |
| Temp. Discharge | −20 to 60 ºC / −4 to 140 ºF |
| Temp. Idle | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 390 g / 13.75 oz. |
High Capacity
evo5–evo25 Battery — High Capacity
EVO-1700-3_5AH
REF.: EVO-1700-3_5AH
Extended capacity for intensive use applications. Delivers 35% more capacity than the standard battery, reducing downtime in high-demand operations.
| Technology | Rechargeable Li-Ion |
| Nominal Voltage | 21.6V DC |
| Nominal Capacity | 3.5 Ah |
| Max. Discharge Current | 6 A |
| Heat Protection | Thermal 70 ºC / 158 ºF |
| Charge Indicator | 4 LEDs (25–50–75–100%) |
| Temp. Charge | 0 to 45 ºC / 32 to 113 ºF |
| Temp. Discharge | −20 to 50 ºC / −4 to 122 ºF |
| Temp. Idle | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 390 g / 13.75 oz. |
evo5 to evo25 — Chargers
Individual · 100-240V
evo5–evo25 100-240V Charger
REF.: ch220
| Input Voltage | 100-240V AC / 50-60Hz |
| Output | 25.2V DC / 1A |
| Charge Indicator | Yes (red LED) |
| Charge Complete | Yes (green LED) |
| Compatibility | EVO-1700 · EVO-1700-T · EVO-1700-3_5AH |
Multiple
evo5–evo25 Battery Multiple Charger
REF.: chx10
| Input Voltage | 100-240V AC / 50-60Hz |
| Charge Indicator | Yes (red LED) |
| Charge Complete | Yes (green LED) |
| Dimensions | 655 × 305 × 230 mm |
| Compatibility | EVO-1700 · EVO-1700-T · EVO-1700-3_5AH |
evo2 · Neo 50/60 · Neo 20 · Neo 20S · C5/C6 · eTrack · D10
evo2 — Batteries
Standard
evo2 Battery — Standard
EVO2-1700
REF.: EVO2-1700
14-segment Eink display shows charge at a glance. Optimised autonomy with updated electronics. Save battery when the hook is not in use.
| Technology | Rechargeable Li-Ion |
| Nominal Voltage | 10.8V DC |
| Nominal Capacity | 3.4 Ah |
| Max. Discharge Current | 6.4 A |
| Heat Protection | Thermal 70 ºC / 158 ºF |
| Charge Indicator | Eink 14-segment display |
| Temp. Charge | 0 to 45 ºC / 32 to 113 ºF |
| Temp. Discharge | −20 to 50 ºC / −4 to 122 ºF |
| Temp. Idle | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 150 g / 5.29 oz. |
High Temperature
evo2 Battery — High Temperature
EVO2-1700-T
REF.: EVO2-1700-T
For demanding environments with extreme heat. Thermal cut-off at 90 ºC and extended maximum discharge temperature of 60 ºC.
| Technology | Rechargeable Li-Ion |
| Nominal Voltage | 10.8V DC |
| Nominal Capacity | 3.4 Ah |
| Max. Discharge Current | 6.4 A |
| Heat Protection | Cut-off 90 ºC / 194 ºF |
| Charge Indicator | Eink 14-segment display |
| Temp. Charge | 0 to 45 ºC / 32 to 113 ºF |
| Temp. Discharge | −20 to 60 ºC / −4 to 140 ºF |
| Temp. Idle | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 150 g / 5.29 oz. |
evo2 — Chargers
Individual · 100-240V
evo2 100-240V Charger
REF.: ch220 evo2
| Input Voltage | 100-240V AC / 50-60Hz |
| Output | 12.6V DC / 1.2A |
| Charge Indicator | No |
| Charge Complete | No |
| Compatibility | EVO2-1700 · EVO2-1700-T |
Multiple
evo2 Battery Multiple Charger
REF.: chx10 evo2
| Input Voltage | 100-240V AC / 50-60Hz |
| Charge Indicator | No |
| Charge Complete | No |
| Dimensions | 655 × 305 × 230 mm |
| Compatibility | EVO2-1700 · EVO2-1700-T |
* Compatible with: evo2, Neo 50/60, Neo 20, Neo 20S, C5/C6, eTrack and D10.
R2 — Battery & Charger
Compatible with: R2 · IP65 · USB-C charging
R2 — Battery
R2
R2 Battery
REF.: R2 battery
Compact 18650 Li-Ion cell with IP65 protection. Integrates directly into the R2 hook with no external connectors. Ultralight at just 50 g.
| Technology | Li-Ion 18650 |
| Nominal Voltage | 3.7V DC |
| Max. Voltage | 4.2V DC |
| Nominal Capacity | 3.5 Ah |
| Protection | IP65 |
| Charge Indicator | On device |
| Temp. Discharge | −20 to 60 ºC / −4 to 140 ºF |
| Weight | 50 g / 1.76 oz. |
R2 — Chargers
Dual
R2 Power Station — Dual Charger
REF.: R2 Power Station
Charges 2 R2 batteries simultaneously via USB-C. Compact and easy to use directly on site.
| Input | USB-C |
| Output | 4.2V DC / 2A |
| Compatibility | R2 |
Multiple · Portable case
R2 Battery Multiple Charger
Portable carry case
Rugged portable carry case for charging multiple R2 batteries simultaneously on site. Charge and transport batteries safely to any job location.
| Input | USB-C |
| Output | 4.2V DC / 2A per slot |
| Format | Portable carry case |
| Compatibility | R2 |
