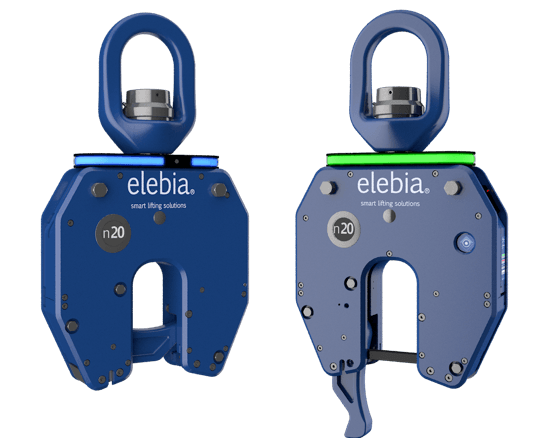

NEO20S Hook
We’ve made the NEO20S 15 mm slimmer by rearranging the position of its motor, which gives it an additional 60 mm of height clearance. This makes it ideal when the lifting point has a very narrow opening and a lower-than-usual contact point. With a lifting capacity of 20,000 kg (44,092 lbs), the NEO20S is designed for oversized lifting points, especially those at the narrower end of the range.
20,000 kgs./44,092 lbs. lifting capacity
Ideal for oversized lifting points (up to 75mm Ø)
Remote engage and release of load
Fail-safe Design: Impossible to drop a suspended load
Safety factor of 4:1
Check out all of our NEO Heavy Duty Lifting Hooks
Check it out!

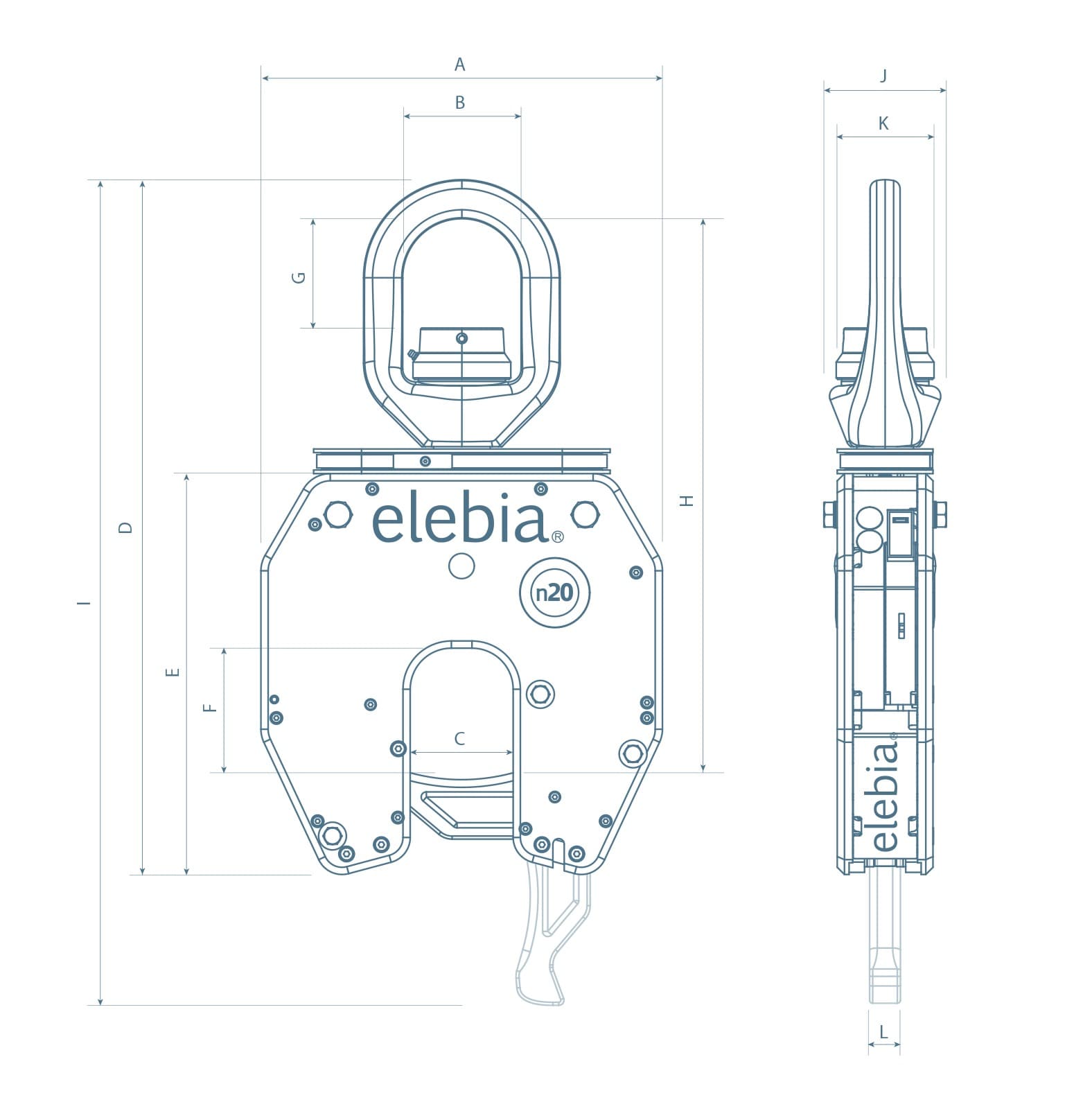

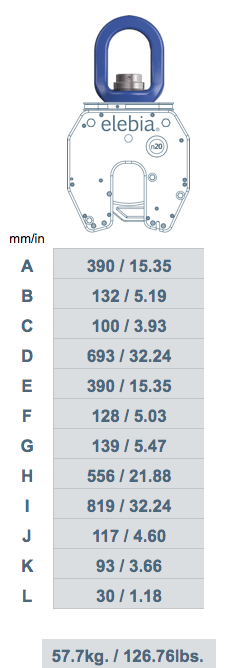

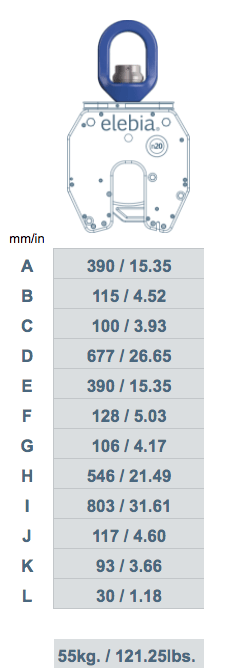

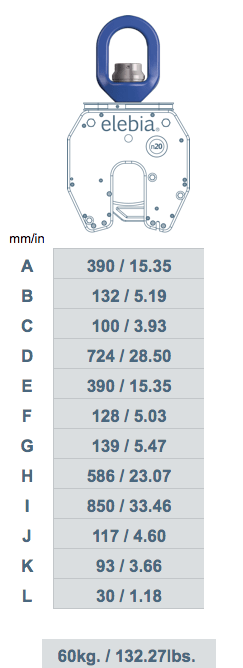

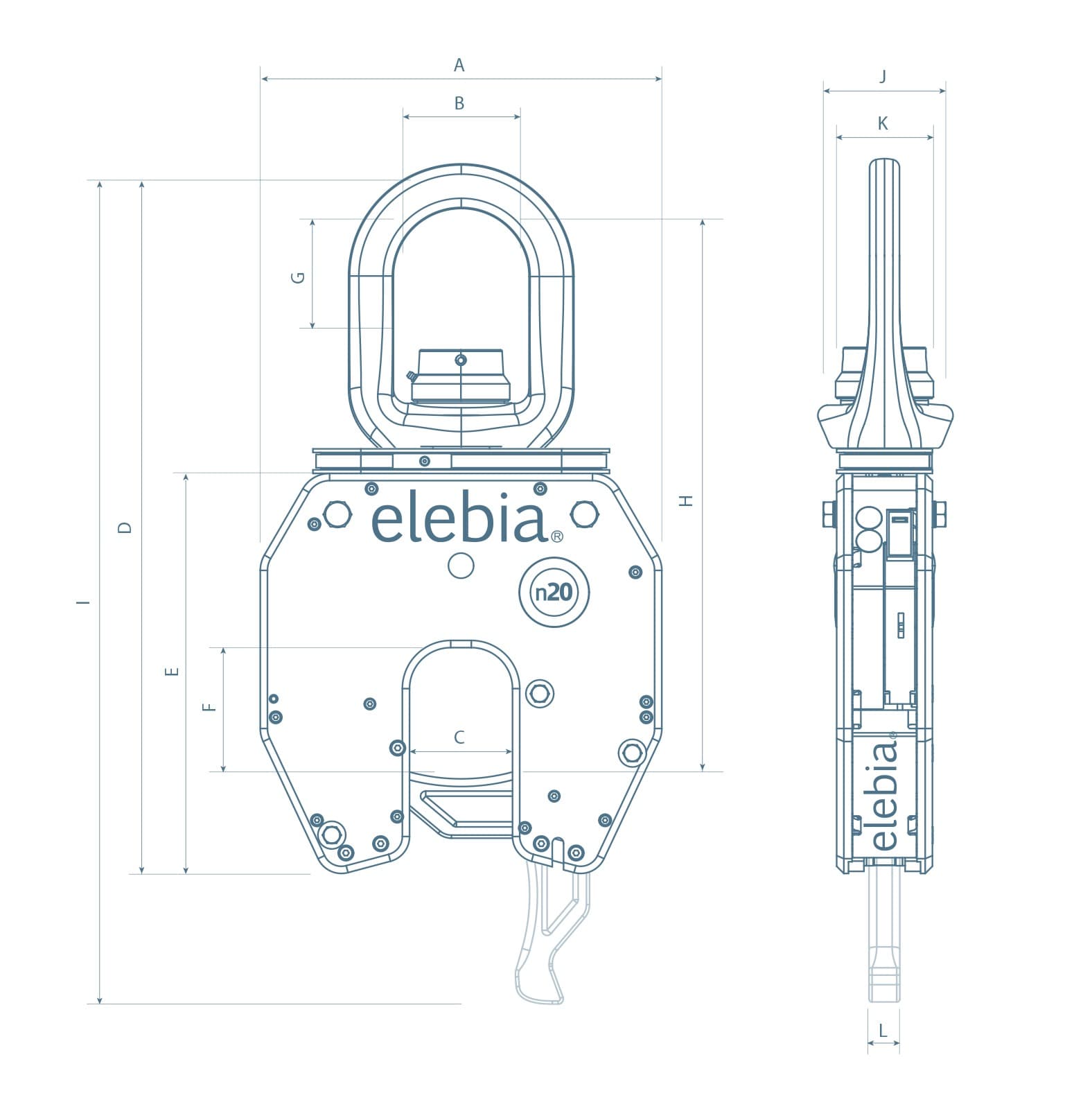

In Detail

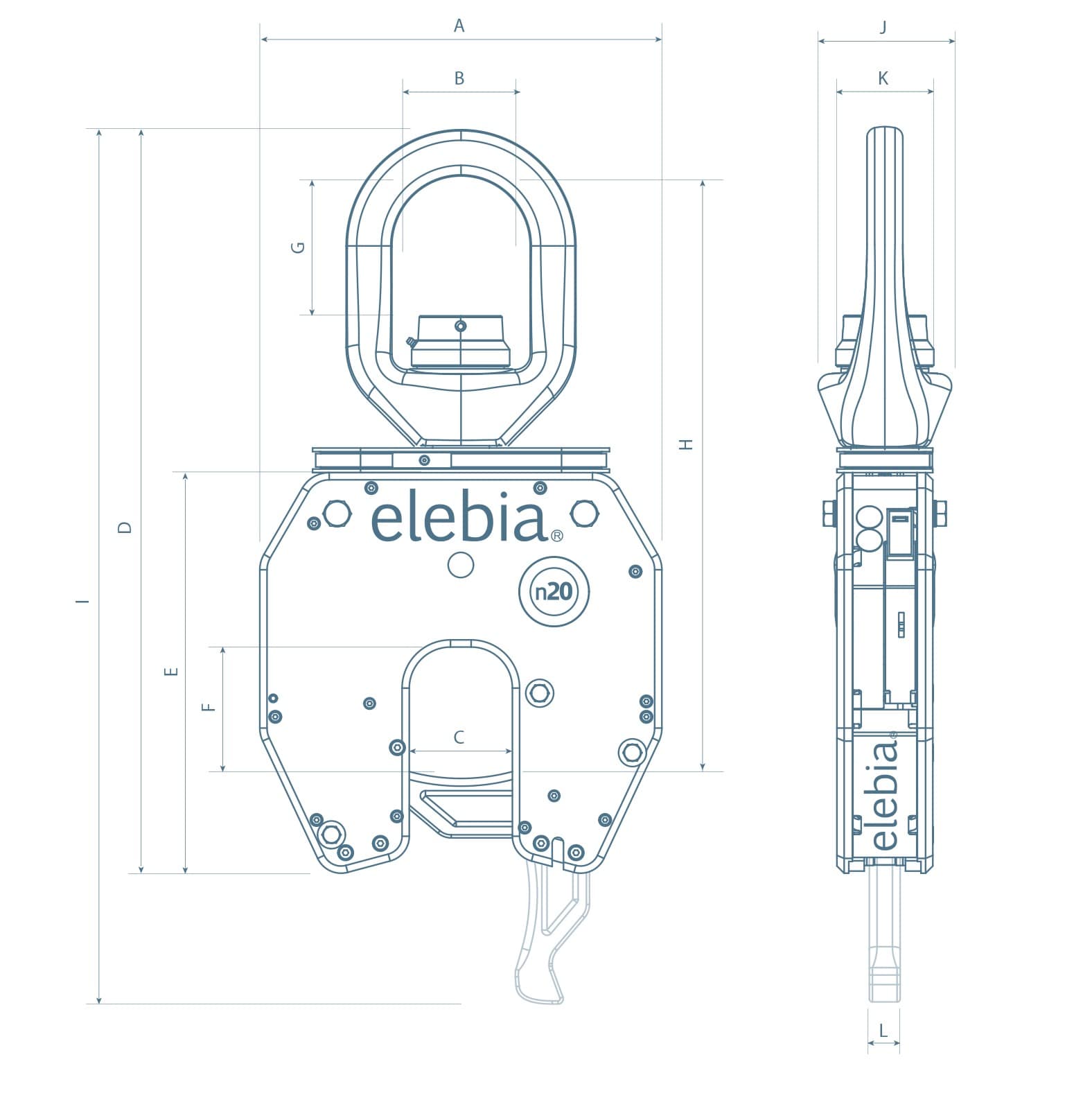

Maximum lifting point Ø: 75 mm

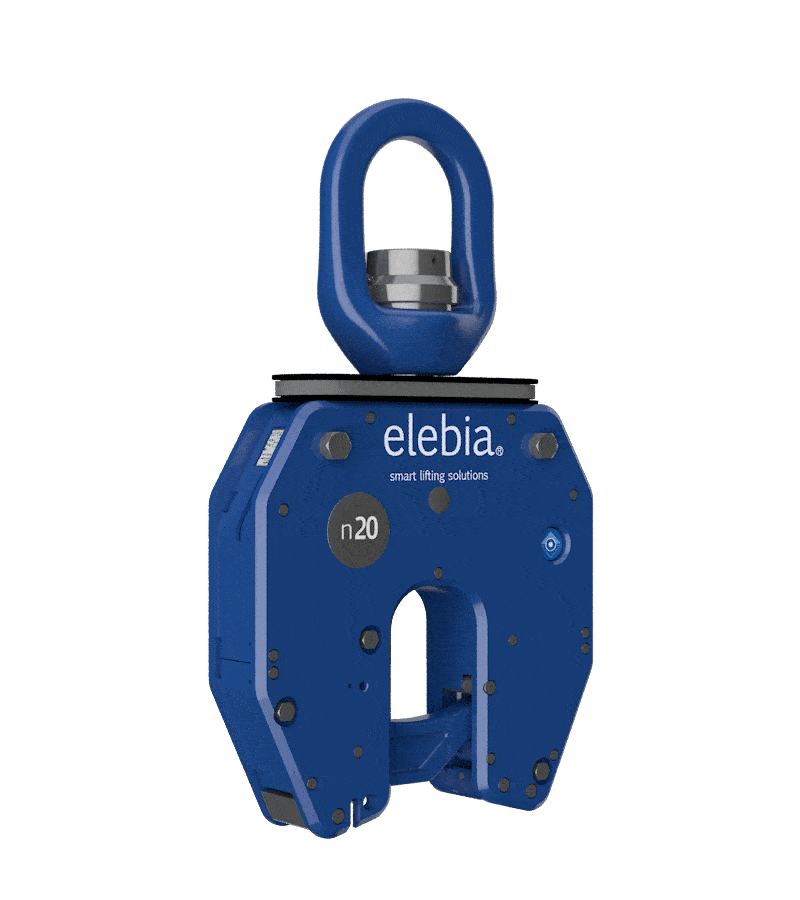

Swivel with Bearings
The bearings allow the NEO20S hook to rotate freely.
If required, the swivel can be set in a fixed position.
LED Status Indicator
The High-Brightness LED status indicator is an additional safety measure which shows the hook’s
status at all times with a bright 4-colour code scheme visible from the operator’s position.
The pulse of the LED status indicator takes an intermittent
pattern after 10 seconds in order to save battery.
Green: Lifting Hook is Open / Release Load
Red: Intermediate: Do Not Lift!
Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
White: Low Battery
NEO20S Battery Life and Charging
Removable, rechargeable Li-Ion battery with a 14-segment E-ink charge display. A 3-hour charge allows more than 3,000 cycles or over 250 hours in standby. With the eMAX remote control, you can set a charge threshold below which the hook can only be opened, so you can always release the load, even with an almost empty battery.
Load Cell *
The NEO20S carries a precise load cell.
It is fully integrated into the lifting hook, representing
no increase in weight or dimensions of the unit.
With the load cell, and should there be a suspended load on the hook,
the intermittence of the LED status indicator’s pulse is of higher frequency.
* This feature is optional
For full weighing scale features including load alarms and unbalance detection, pair with the eMAX remote control.
Specifications
| Load Cell Type | Traction |
| Material | Stainless Steel |
| Protection | IP67 (EN60529) |
| Nominal Capacity (Ln) | 20,000 |
| Accuracy Class | 0.2% |
| Minimum Dead Load | 0% Ln |
| Service Load | 120% Ln |
| Ultimate Load | 400% Ln |
| Total Error | < ±0.2% Sn |
| Repeatability Error | < ±0.08% Sn |
| Temperature Effect: | |
| on zero | < ±0.01% Sn / 5 ºK |
| on sensitivity | < ±0.01% Sn / 5 ºK |
| Creep Error (30 min.) | < ±0.03% Sn |
| Temperature Compensation | -20ºC to 50ºC |
| Temperature Limit | -30ºC to 70ºC |
| Nominal Sensitivity (Sn) | 1 ±0.25% mV/V |
| Nominal Input Voltage | 10V |
| Maximum Input Voltage | 15V |
| Input Impedance | 800 ±30 Ω |
| Output Impedance | 700 ±5 Ω |
| No Load Input | < ±2% Sn |
| Insulation Resistance | > 5,000 MΩ |
| Maximum Deflection (at Ln) | 0.3 mm. |
Autoclose Mode
When the trigger touches the lifting point, the NEO20S hook closes automatically
and a sensor confirms engagement.
Laser Pointer *
As an optional feature, the NEO20S carries a Laser Pointer.
It acts as a guide to perfectly place and set the lifting hook
in the correct position when approaching the lifting point.
To activate it, simply press the button beside the battery slot.
* This feature is optional
Remote Controlled
At elebia, we produce different remote controls tailored to our customer’s needs.
All of them allow simple, flexible, precise and reliable control in a fail-safe way.
The NEO20S can be paired to either the eMAX, eMINI or eINST
remote controls, or to all 3 if necessary.

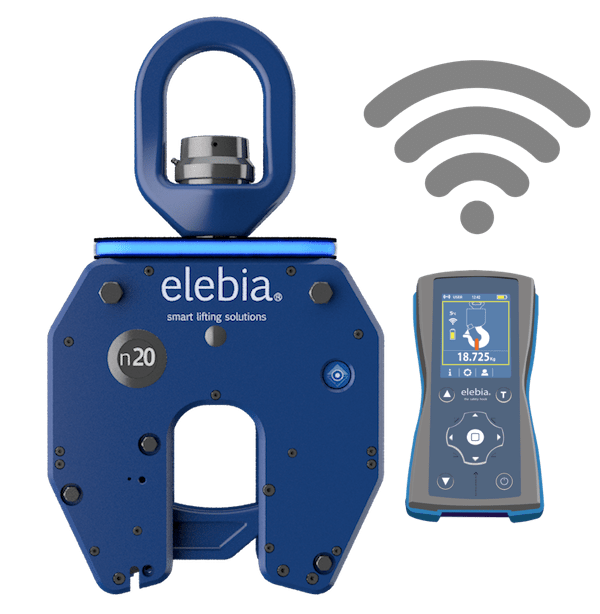

Fail-safe Designed
Just like the rest of the NEO range of lifting hooks,
(and all of our lifting products for that matter)
the NEO20S hook is designed under a fail-safe principle
that makes it impossible to drop a suspended load.

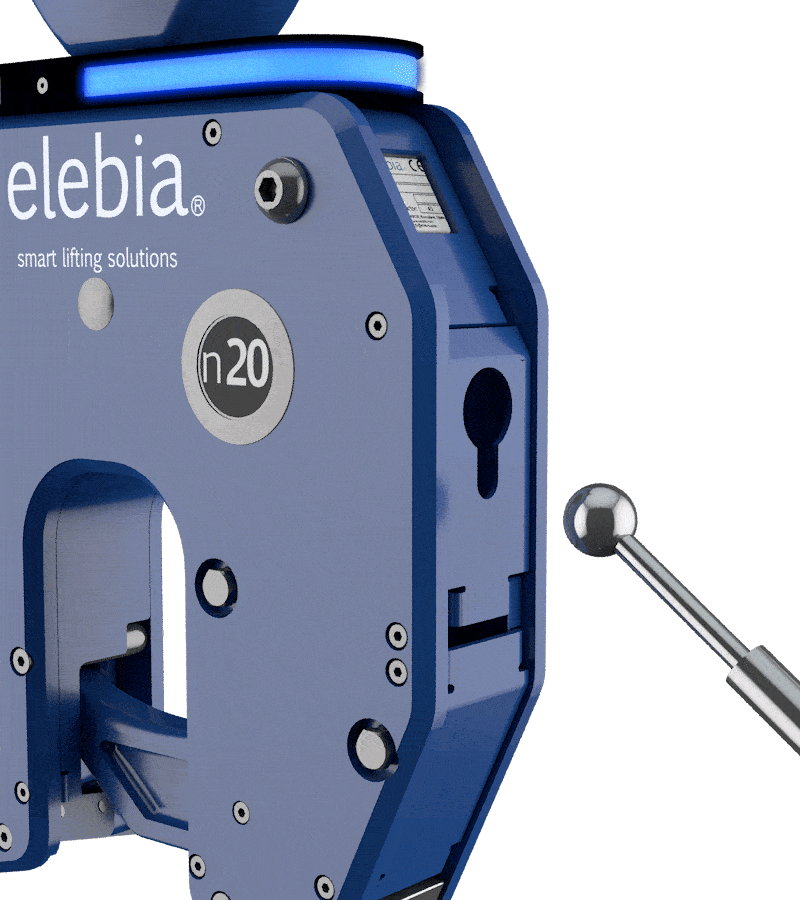

Manual Override
If there’s ever the need to manually override NEO20S’s
electronics, the process is very simple.
1. Insert the end/tip of pole in the cover’s slot.
2. Lower the end/tip of pole until it reaches
the narrow lower bottom end of the cover’s slot.
3. Pull until the cover opens and wait until LEDs turn green.
*Mast and ball for manual override, not included.

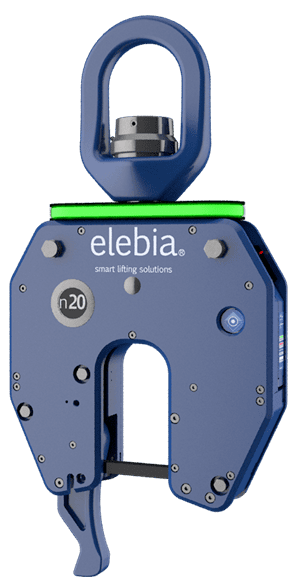

Regulatory Standards
The NEO20S hook complies with the following standards, directives and certifications.
Lifting & machine safety
- – UNE-EN 13135:2013
- – EN 10204 3.1.B
- – UNE-EN ISO 12100:2012
- – UNE-EN 1050
- – UNE-EN 60204-1:2007
Electrical & radio
- – UNE-EN 60730-1:2013
- – UNE-EN 61000-6-2:2006
- – UNE-EN 61000-6-4:2007
- – ETSI EN 303 446-1 V1.1.0 · ETSI EN 303 446-2 V1.1.0
- – ETSI EN 300 220-1 V3.1.1 · ETSI EN 300 220-2 V3.1.1
EU directives
- – Machinery Directive 2006/42/EC
- – EMC Directive 2014/30/EU
- – Low Voltage Directive 2014/35/EU
- – Radio Equipment Directive 2014/53/EU
Certifications & quality
- – Production quality assured to ISO 9001
- – ARIB Construction Design Certification No. 203-JN0689
- – FCC Identifier 2ACLHEVO (Digital Transmission System)
- – CE marking and declaration of CE conformity with every hook
- – Member of F.E.M. (European Federation of Materials Handling)
See it in Action!
Lifting Procedure
LED Status Indicator
Quick Links
Configurator
Personalize and configure
your NEO20S lifting hook
and its accessories.
Schedule a Demo
Need or want to see in person
how your company can benefit
by using the NEO20S lifting hook?
Quick FAQ’s about NEO20S
What industries can the NEO20S be used in?
Basically any industry, but it is ideal for applications with oversized lifting points, especially those at the narrower end of the oversized range. You can check the maximum lifting point diameter in the In Detail section.
Is it possible to drop a suspended load with the NEO20S lifting hook?
No, it is not possible to drop a suspended load thanks to the hook’s fail-safe design. The motor’s torque is not powerful enough to open the hook when a load is suspended.

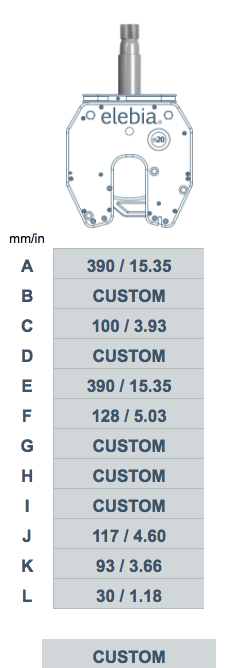

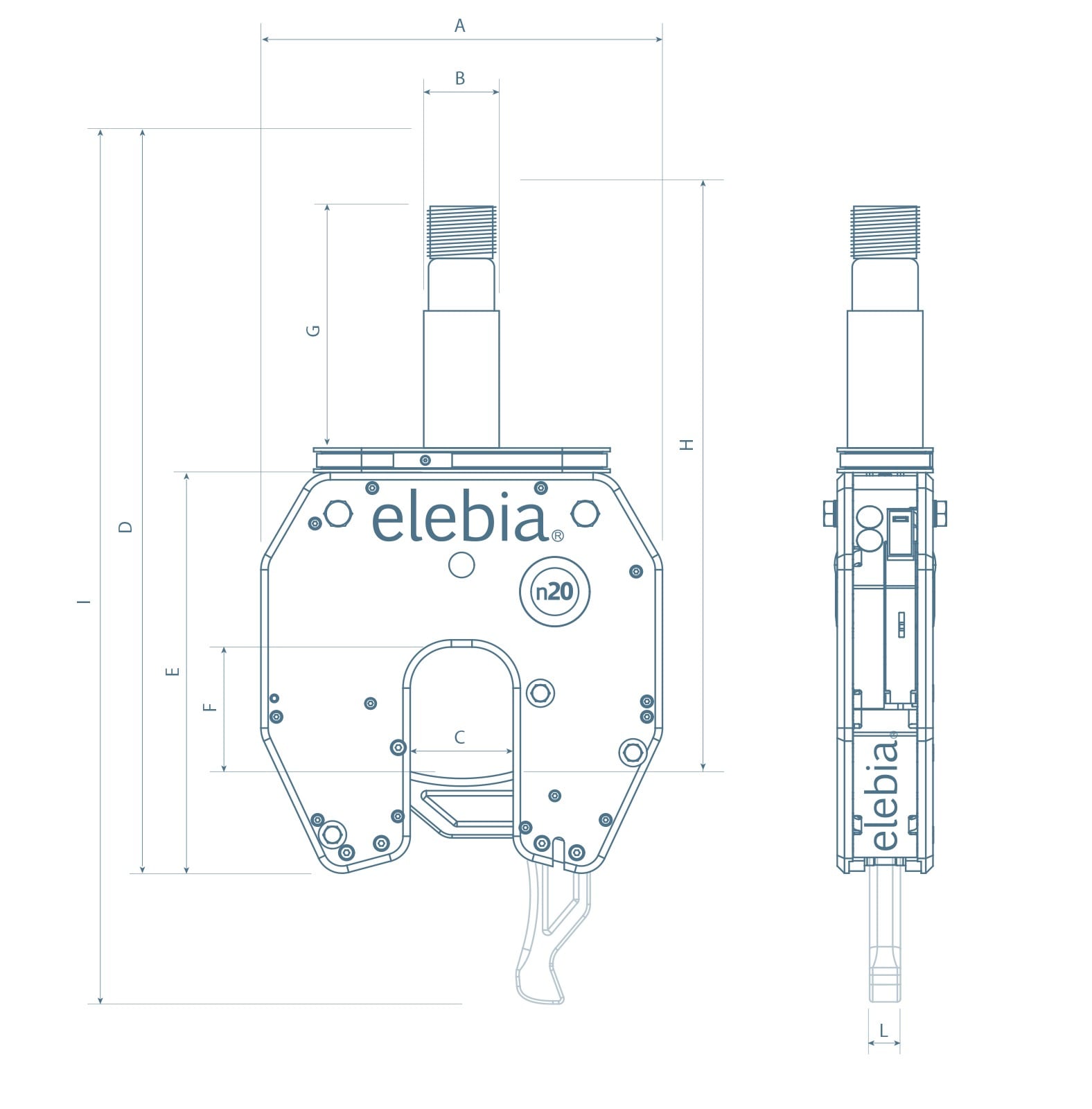

Can you customise the top link of the NEO20S lifting hook?
Yes. Different top link options can be used for the use of the lifting hook to adapt it to the lifting point.
